Crompton 10 HP (7.5 kW) IE3 1440 RPM 3‑Phase Electric Motor – Foot/Flange Mount, IP55 Cast Iron Body
Crompton 10 HP (7.5 kW) IE3 1440 RPM 3‑Phase Electric Motor – Foot/Flange Mount, IP55 Cast Iron Body
Couldn't load pickup availability
In stock: 10
Power up your equipment with the robust and energy-efficient Crompton 10 HP IE3 motor. Built for heavy-duty industrial use, this motor blends rugged construction, superior efficiency, and versatile mounting to suit a wide range of applications.
🌟 Premium IE3 Efficiency
Certified IE3 (Premium Efficiency), offering significant energy savings and cost-effective operation compared to older IE2 models.
🔁 Standard 4-Pole 1440 RPM Performance
Ideal for pumps, fans, compressors, and conveyors, this 4-pole design delivers consistent torque at 1440 RPM.
🏭 Strong Construction
Cast iron housing with TEFC design ensures protection in dusty and harsh industrial environments. IP55 rating provides dust and water protection.
⚙️ Flexible Mounting Options
Foot (B3) and flange (B5) mounting configurations allow easy integration into various mechanical setups.
🔌 Compatible with Standard Industrial Power
Operates on 415 V ±10%, 50 Hz ±5% supply. Class F insulation ensures reliable thermal handling.
⚡ 3‑Phase Squirrel-Cage Induction
Provides maintenance-free performance suitable for continuous operation and built for long life with sealed bearings.
🔄 Supports VFD Operation
Constructed with durable bearings and enclosure to support variable frequency drives (VFD) for flexible speed control.
🔒 Continuous Duty (S1)
Engineered for nonstop operation in industrial settings with ambient temperatures up to 50 °C.
🛡️ Manufacturer Warranty
Comes with a 12-month warranty from date of dispatch or commissioning, whichever occurs first.
Key Specifications:
| Parameter | Details |
|---|---|
| Rated Power | 10 HP (7.5 kW) |
| Speed | 1440 RPM (4 poles) |
| Efficiency Class | IE3 (Premium) |
| Voltage | 415 V ±10% |
| Frequency | 50 Hz ±5% |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Protection | IP55 |
| Insulation Class | Class F |
| Mounting Type | Foot (B3) / Flange (B5) |
| Motor Type | 3‑Phase Squirrel Cage Induction |
| Bearing Type | Sealed ball (upgradeable for VFD use) |
| Duty Cycle | Continuous (S1) |
| Ambient Temp | Up to 50 °C |
Image for Shopify Store:

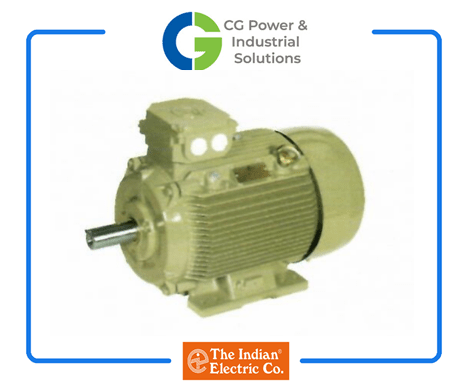

The carousel above shows high-resolution images showcasing the motor’s cast iron housing, flange and foot mounts — perfect for thumbnails, product pages, and detail shots.
Usage & Variants to Consider:
Ideal Applications: Pumps, fans, compressors, conveyors, mixers, and agro-processing machines.
Variant Suggestions:
-
-
Flame-proof version for hazardous environments.
-
VFD-ready version with roller bearings.
-
Optional accessories: space heaters, thermistors, lifting eye, shaft extensions.
-
