Fusion 20 kW On-Grid Solar Inverter – 3 Phase | High Capacity, Net Metering Ready

Power Big with Fusion 20 kW On-Grid Solar Inverter
Engineered for high-load commercial and industrial solar applications, the Fusion 20 kW On-Grid Inverter delivers superior performance, safety, and energy savings. It efficiently converts solar DC power into AC and feeds it directly into the main grid, making it ideal for large-scale rooftop installations and net metering programs.

With dual MPPT controllers, this inverter ensures maximum output across variable conditions. Its transformerless design ensures lightweight build and higher conversion efficiency, while the integrated protections offer worry-free operations.

🔧 Key Features:

Supports large-scale solar arrays – up to 26,000 W

Dual MPPT for optimized energy harvesting

Three-phase feed-in for commercial setups

96.8% high conversion efficiency

Zero export and safety protection features included

Smart disconnection during blackouts to protect line workers

Compact wall-mounted design

Ultra-quiet operation: < 30 dBA

10-Year Manufacturer Warranty*

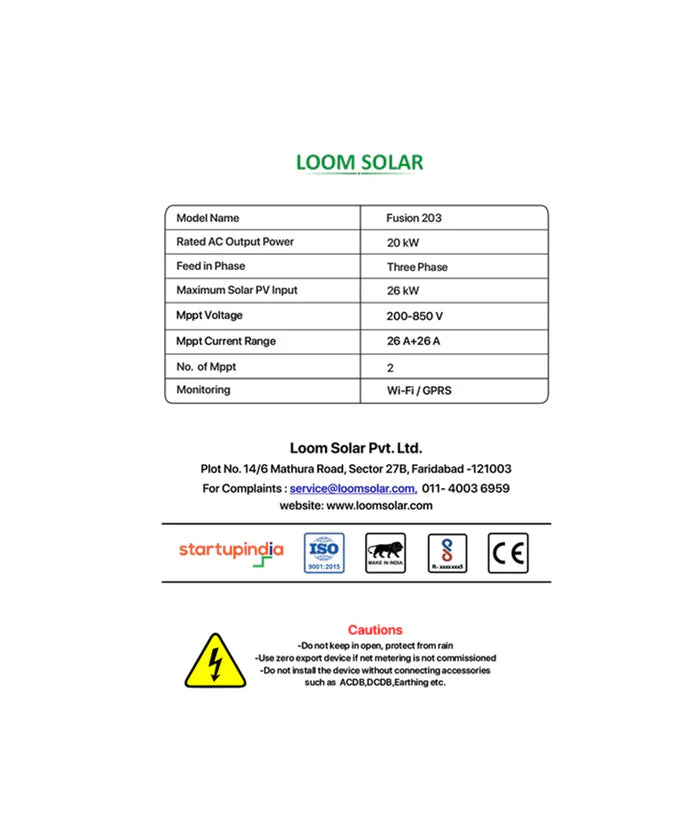

📊 Technical Specifications:

Model Name: Fusion 203

System Rating: 20 kW, Three Phase

Max. Solar Input: 26,000 W

Efficiency: 96.80%

Topology: Transformerless

MPPT Controllers: 2

Feed-in Phase: Three Phase

Noise Level: < 30 dBA

Weight: 25.5 kg

Dimensions: 362 × 577 × 215 mm
