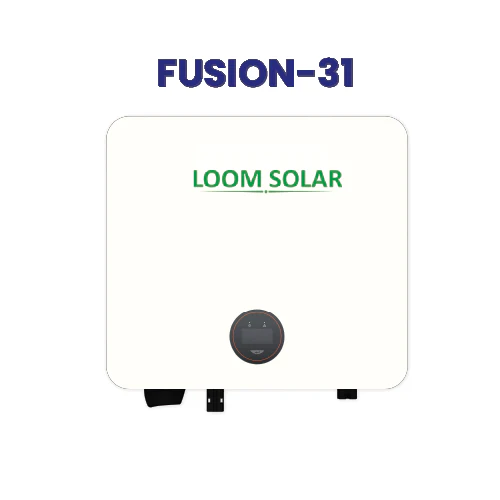

Fusion 3 kW, 1 Ø On-Grid Solar Inverter

Power your home with confidence.
Loom Solar’s Fusion 3 kW On-Grid Inverter is built for Indian conditions — compact, efficient, and engineered for long-term solar performance. Ideal for residential rooftops, it connects directly to the grid and features advanced safety mechanisms and real-time remote monitoring.

✅ Key Features:

Wall-mounted design with LCD display

97% conversion efficiency

Single-phase output, up to 3300W solar input

Built-in protections: DC reverse polarity, insulation monitoring, over-voltage, AC short circuit

Optional zero-export feature for DISCOM compliance

Remote monitoring via mobile app & web (free for 25 years)

Anti-islanding and ground fault protection

Type II surge protection

10 Years Warranty*

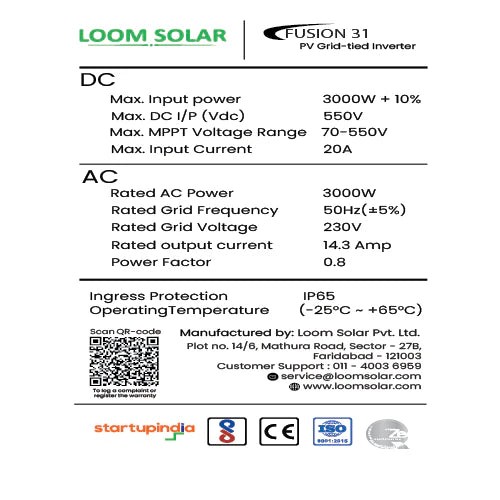

🔧 Technical Specifications:

Model: Fusion 31FE

System Rating: 3 kW (Single Phase)

Max Solar Input: 3300 W

Efficiency: 97%

Feed-in Phase: Single Phase

Topology: Non-isolated

MPPT Controller: 1

Noise Level: < 30 dBA

Weight: 5.4 kg

Dimensions: 290 × 220 × 116 mm
