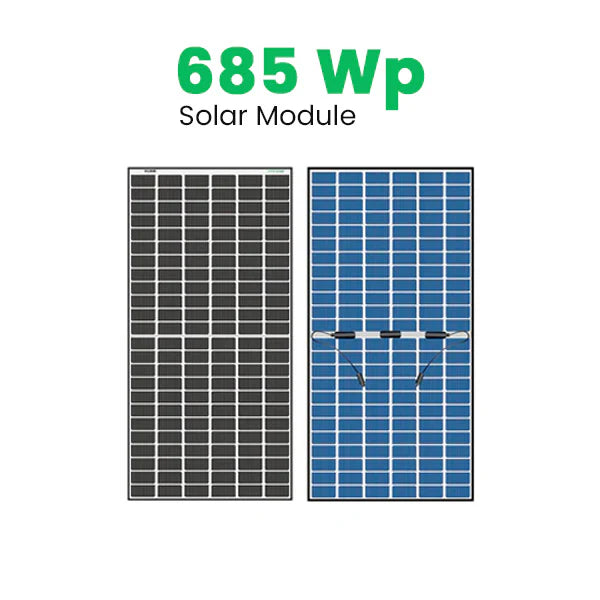

Loom Solar Panel – SHARK 685Wp | N-Type Bifacial 12BB (Pack of 2)

Elevate your solar experience with the Loom Solar SHARK 685Wp Bifacial Panels — India’s top-performing residential panel solution.

🔋 Key Features:

High Efficiency: Delivers 685W with 22% conversion efficiency

Bifacial Technology: Generates up to 25% more power with rear-side energy gain

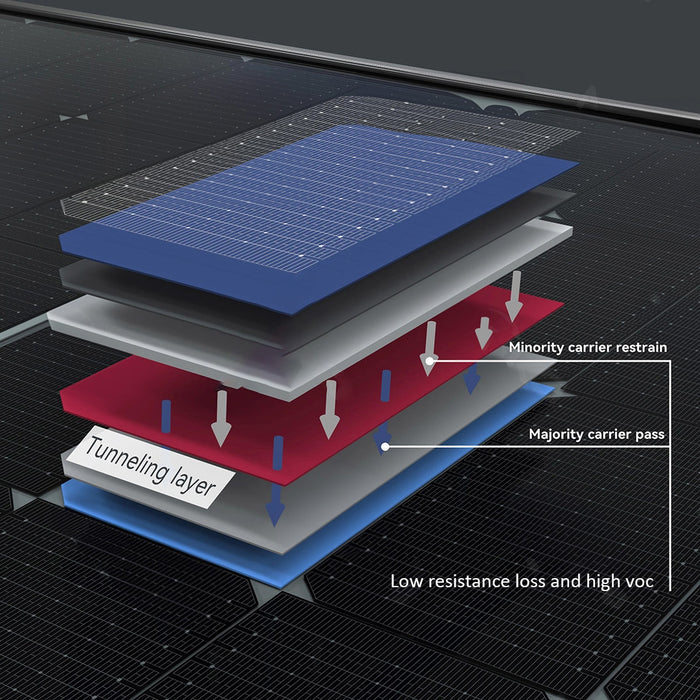

12-Busbar & 132 Half-Cut Cells: Superior energy harvest, minimal loss

IP68 Split Junction Box: Weather-sealed with 3 bypass diodes

Durable Build: 2+2 mm AR-coated toughened glass with anodized aluminium frame

Space Saving: One panel covers 27 sq. ft. — fewer panels, more power

Warranty: 10 years on manufacturing, 30 years on performance

🔧 Tech Specs:

Voltage: 24V | Power Output: 685W

Vmp: 43.5V | Imp: 17.57A

Voc: 46.5V | Isc: 18.6A

Panel Dimensions: 2278 x 1134 x 30 mm

Weight: 35 kg

Connector: MC4 compatible, 4.0mm cable

📦 Shipping Weight: 37 kg
📏 Shipping Size: 2384 x 1303 x 35 mm
